TRIZ Conductive Silicone Elastomer
EMI Elastomers made of metal particles in Silicone, with great technics for compounding and controlling shapes. The products have high conductivity and excellent shielding & sealing effects.

Silicone Product Typical Applications Special Feature
EMI Conductive Silicone Elastomer Telecommunication High conductivity
Dyad Conductive Silicone Elastomer Medical Heat-resisting property
Silicone Rubber Extruded Area where needs high shielding combined with excellent moisture sealing properties Halogen free
Silicone Rubber Sponge Industrial Electronic Equipment Excellent sealing effect (waterproof & dustpoof)
  Military Equipment

Conductive Filler& Binder Silver Coated Copper Silicone Silver Coated Aluminium Silicone Nickel Coated Graphite Silicone Carbon Silicone TestMethod
Electrically Properties
Volume Resistivity Ω,㎠0.02 0.08 0.1 7 ASTM D257
Shielding Effectiveness dB >80 >70 >40 >20 ASTM D4935
Physical Properties
Specific Gravity g/㎤ 3.20 (+/-0.2) 2.00 (+/-0.2) 2.00 (+/-0.2) 1.30 (+/-0.2) ASTM D792
Hardness Shore A 50~80(±5) 50~80(±5) 50~80(±5) 60~70(±5) ASTM D2240
Tensile strength kgf/㎠ 30 (430 psi) 20 (285 psi) 20 (285 psi) 60 (850 psi) ASTM D412
Tear Strength kgf/cm 7 6 7 17 ASTM D6248
Elongation % Min. 200 200 200 330 ASTM D412
Temperature Range ℃ - 50~+125 - 50~+150 - 50~+150 - 50~+170
Custom Formulation: Ability to generate any EMI conductive silicone elastomer compound to meet customer's specification with large and small uniform batches.

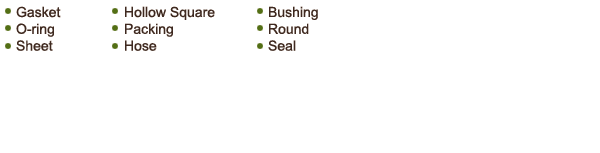

Use of products:
